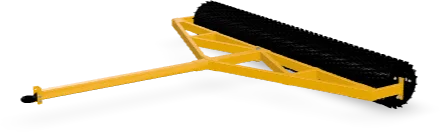

Ring Roller

Sizing: 4' to 23'

Ring Rollers can be used for packing or tilling depending on how the rings are mounted and are the most versatile implement used on the farm.

Ring Roller

Ring Rollers can be used for packing or tilling depending on how the rings are mounted and are the most versatile implement used on the farm.
Find it at a Dealer Near You

Features

  • 4" x 4" x 1/4" Tube Frame
  • 1-15/16" Pillow Block Bearings
  • Clevis hitch
  • Roller can be filled with water
  • Available in multiple widths
  • Made In The USA

Each ring roller width is available in the following setup:

10" roller tube with either 12/16, 14/20 or 16/22 rings
12" roller tube with either 14/20 or 16/22 rings
14" roller tube with 16/22 rings

16/22, 14/20 or 12/16 rings

16/22, 14/20 or 12/16 rings

Ring flop diagram

Ring flop diagram

Ring orientation for packing or tilling

Ring orientation for packing or tilling

Bolt on Options

  • Optional 3pt Hitch

    Availabe in 2 configurations:
    3pt Hitch CAT I & II (2'-13')
    3pt Hitch CAT II & III (14'-24')

Specifications

For all Ring Roller lengths:

Roller Tube Diameter 10" 10" 10" 12" 12" 14"
Ring Sizes 12/16 14/20 16/22 14/20 16/22 16/22
Ring Flop 1-1/2" 3-1/2" 5-1/2" 1-1/2" 3-1/2" 1-1/2"

Files

View 3D Interactive Image

AR is available and for viewing on a iPhone when using the safari browser.
Note: It may take a bit of time to open as some files are quite large.
Note: It may take a bit of time to open as some files are quite large.

View 3D Parts Model

View Ring Roller 3D File
Note: The 3D CAD File may take a bit of time to open as some files are quite large. Once the file is open, you can rotate, zoom and interact with the item via the browser. When hovering your cursor over a specific replaceable part, the part number will be shown.

Printable Files

View Brochure
View Parts Book
